Leon Dionne's Mill Tooling Plate

Leonne Dionne's latest, his tooling plate and mill tooling:

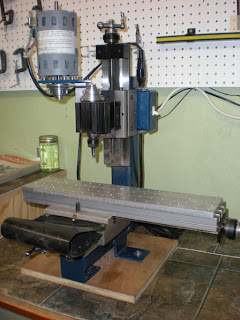

My Taig mill is mostly unmodified except for the tooling plate I made for it.

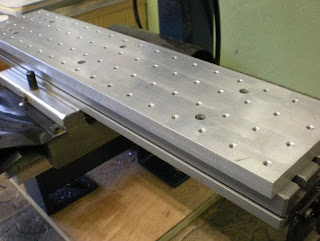

Tooling plate is made of 1/2" thick aluminum, 5 inches wide.

The Sherline rotary table is shown here mounted in the vertical position.

This riser block allows me to use the Taig tailstock with the Sherline rotary table on my tooling plate.

Vee blocks (or should I call those X blocks) made from 1" square aluminum stock.
